HA36S Front Strut Upper Mount Kit (GMB) for Suzuki Alto (Dec 2014~/Chassis No.860001 onward/Left & Right Set)
HA36S Front Strut Upper Mount Kit (GMB) for Suzuki Alto (Dec 2014~/Chassis No.860001 onward/Left & Right Set)
Couldn't load pickup availability
Please make sure that the part is compatible with your vehicle before purchasing.
Product Information
Product Name: Front Strut Upper Mount Kit – Left & Right Set
Manufacturer: GMB
Kit Part Number: GMS-10090
Installation Position: Front
Quantity: Complete Set for One Vehicle
The upper strut mount connects the vehicle's suspension assembly to the body.
Because these components continuously support vehicle loads and contain rubber parts, they are subject to wear and deterioration over time. Worn suspension mounting components may affect ride comfort and handling performance.

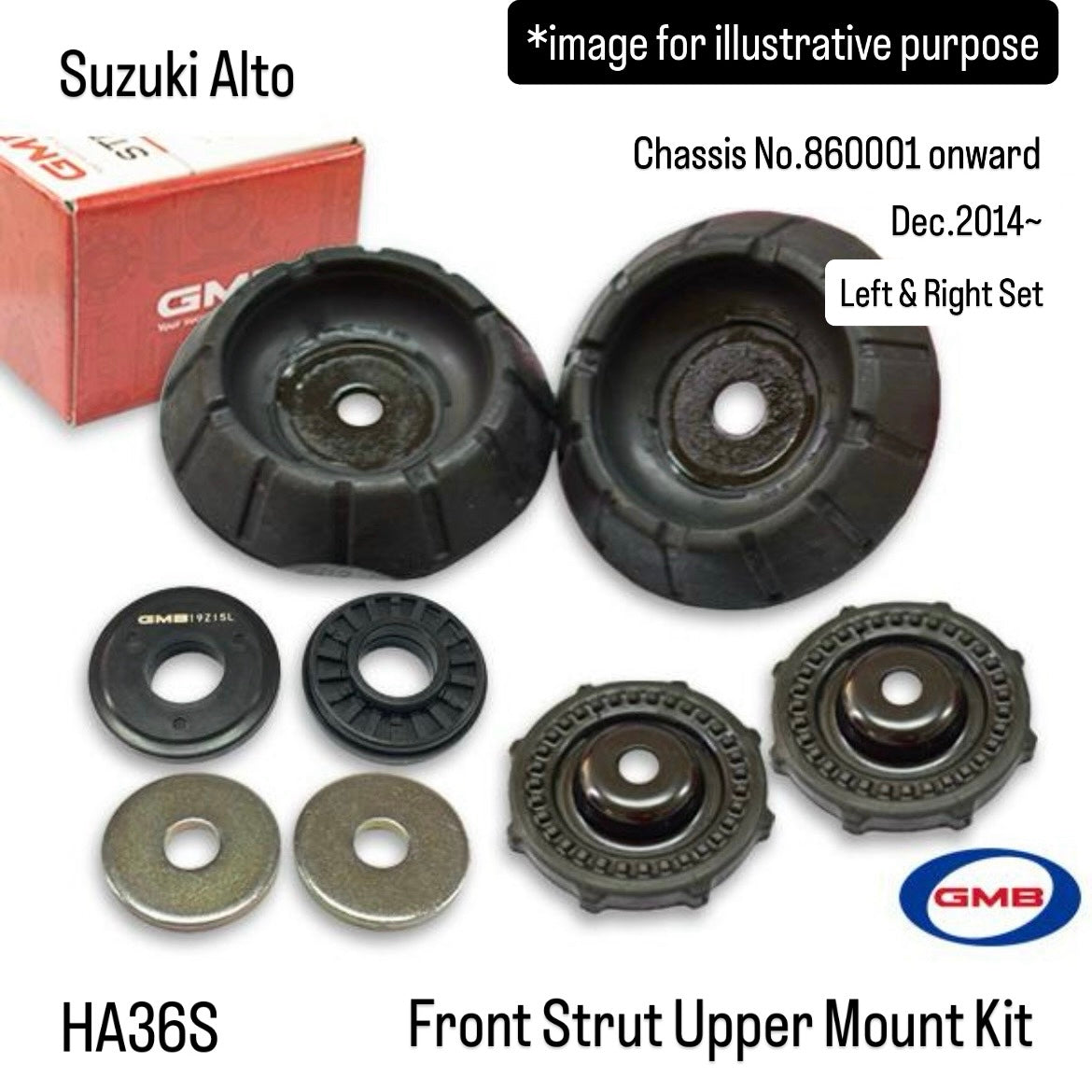

Included Items
Each component listed below is supplied in a quantity of 2 for the left and right sides.
| Item | Part Number | Reference OEM Part Numbers | Qty. |
|---|---|---|---|

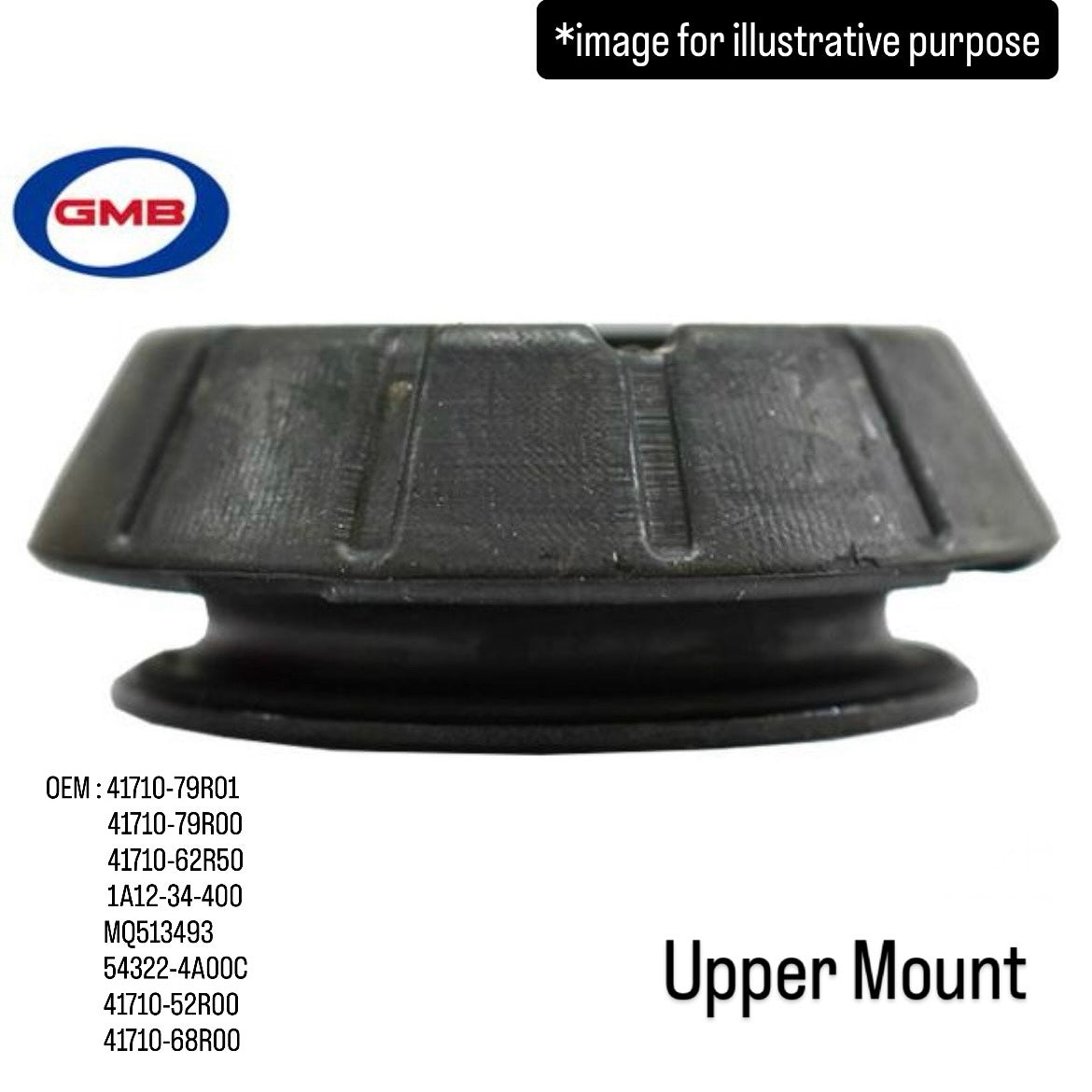

| Upper Mount | GMS-20040 | 41710-79R01 / 41710-79R00 / 41710-62R50 / 1A12-34-400 / MQ513493 / 54322-4A00C / 41710-52R00 / 41710-68R00 | 2pc |

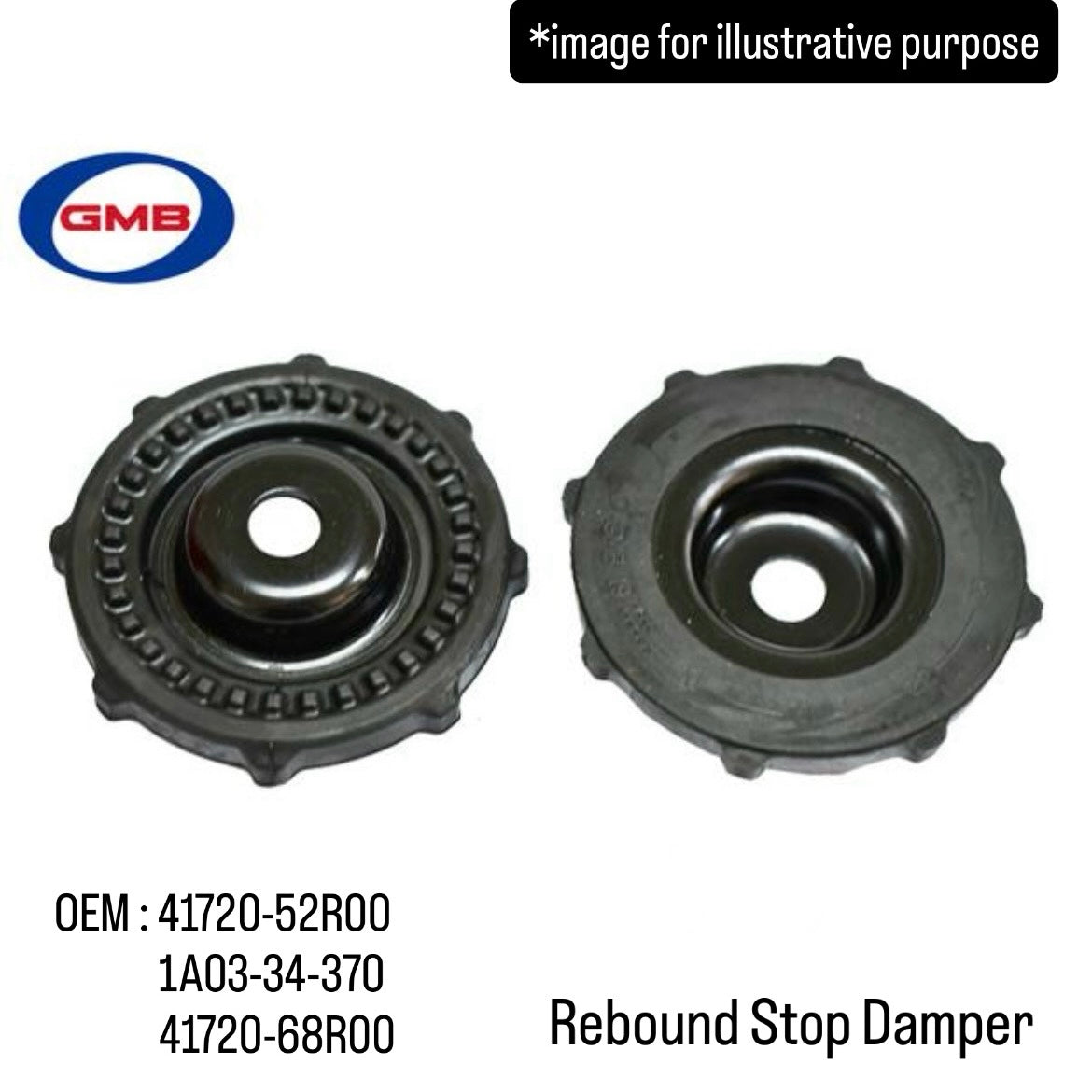

| Rebound Stop Damper | GMS-30020 | 41720-52R00 / 1A03-34-370 / 41720-68R00 | 2pc |

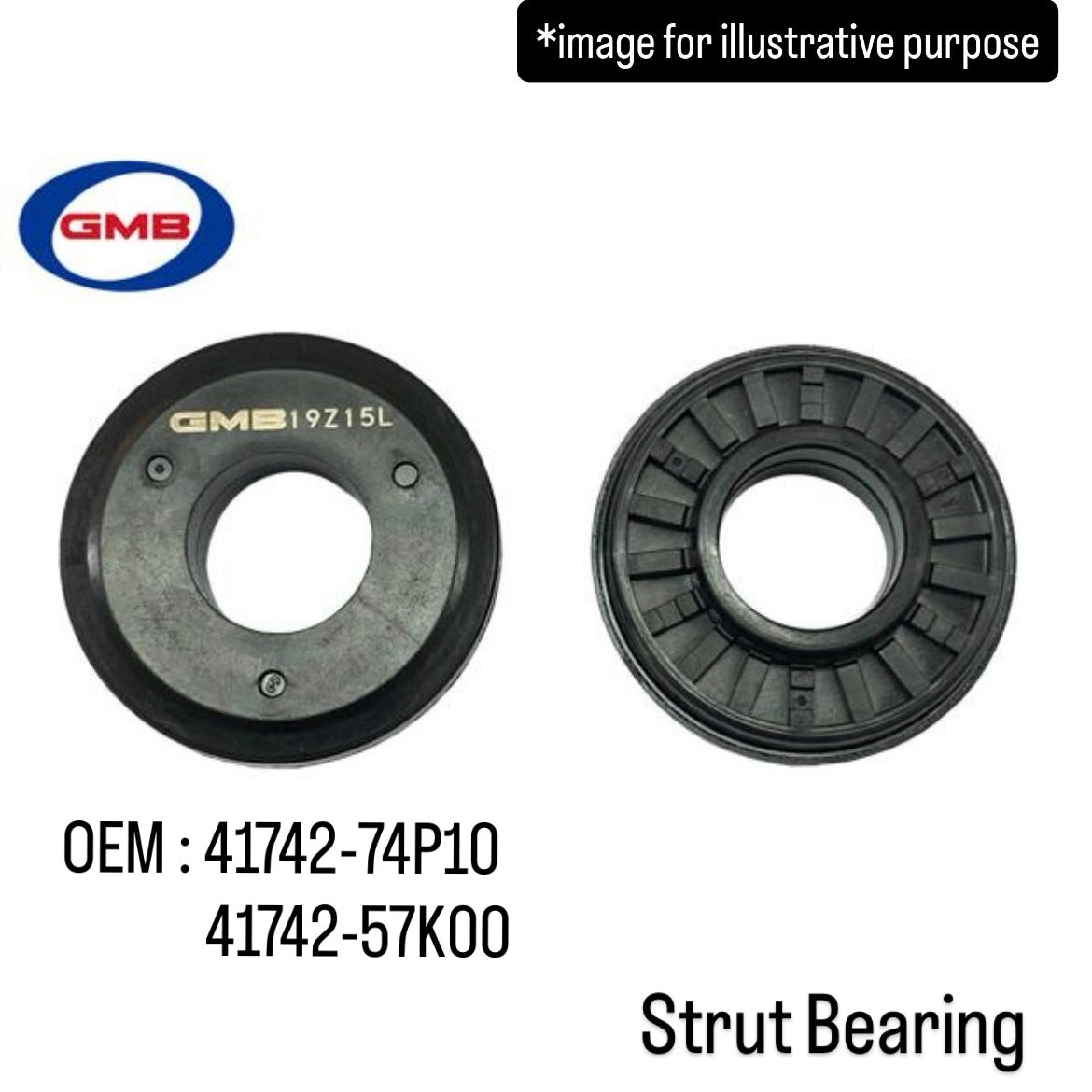

| Strut Bearing | GMS-50050 | 41742-74P10 / 41742-57K00 | 2pc |

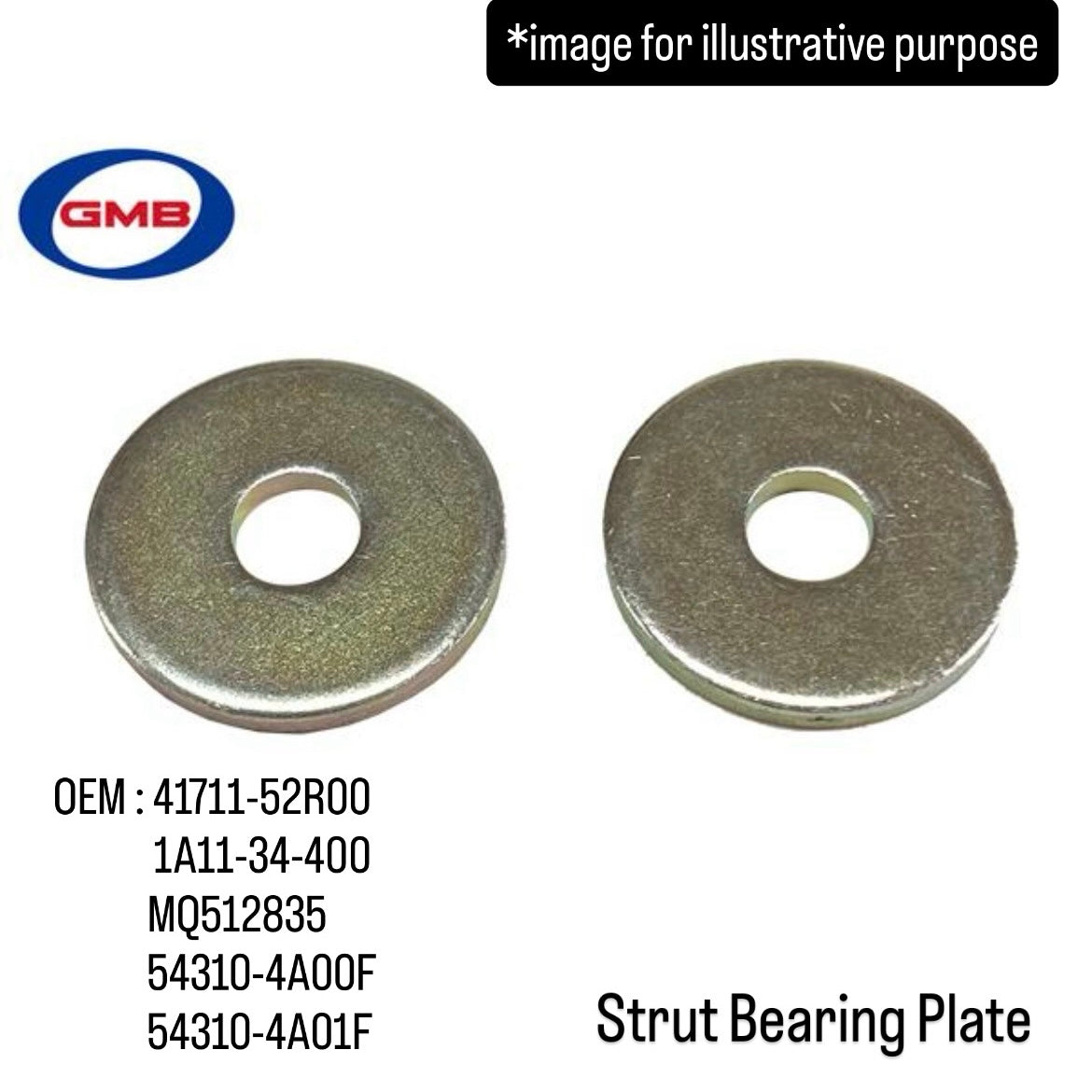

| Strut Bearing Plate | GMS-60010 | 41711-52R00 / 1A11-34-400 / MQ512835 / 54310-4A00F / 54310-4A01F | 2pc |
Total: 8 Components / Complete Front Left & Right Kit
Compatible Vehicles
SUZUKI
| Item | Specification |
|---|---|
| Vehicle | Alto |
| Model | HA36S |
| Model Year | December 2014 onward |
| Chassis Number | 860001 onward |
| Installation Position | Front |
Important Chassis Number Requirement
This product is specified for vehicles with chassis numbers 860001 and later.
Please check your vehicle's chassis number before purchasing.
Specifications
| Item | Specification |
|---|---|
| Manufacturer | GMB |
| Kit Part Number | GMS-10090 |
| Product Type | Strut Upper Mount Kit |
| Installation Position | Front |
| Application | Left & Right |
| Upper Mounts | 2pc |
| Rebound Stop Dampers | 2pc |
| Strut Bearings | 2pc |
| Strut Bearing Plates | 2pc |
Installation Notes
Please observe the correct manufacturer-specified tightening torque for all bolts and nuts during installation.
After replacing the suspension components, a wheel alignment inspection and adjustment is recommended.
Incorrect wheel alignment may affect:
- Ride comfort
- Vehicle handling
- Steering characteristics
- Tire wear
Improper alignment may also cause uneven or abnormal tire wear.
Note:
Please check the part compatibility before purchasing.
Please check the part number before purchasing.
Kit Part Number: GMS-10090
Important: Chassis Number 860001 onward
Please confirm your vehicle model, model year, and chassis number before purchasing.
Even within the listed model years, compatibility may vary depending on the vehicle specifications.
Please follow the appropriate service procedures and specified tightening torques during installation.
Wheel alignment should be inspected and adjusted after replacement.
We are not responsible for any labor costs for installation, removal, or repair.
